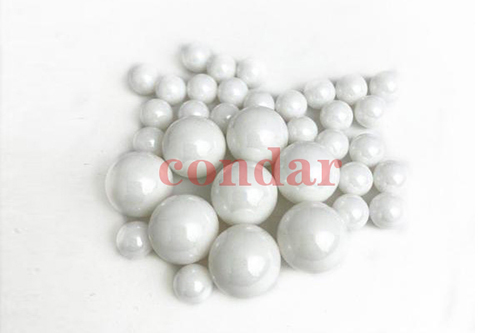

G5 ZrO2 Ceramic Ball is supplied to you by Condar, a Chinese manufacturer. We have been in the industry for more than 20 years and have rich experience in production and sales. We have well-equipped factories and large warehouses with sufficient stock. From product quality to delivery speed, we hope to provide you with comprehensive quality assurance.
G5 ZrO2 ceramic balls have high strength and toughness at room temperature, good wear resistance, high temperature resistance and corrosion resistance, high rigidity, non-magnetic conductivity, and electrical insulation. At 600℃, the strength and hardness of zirconia ceramic balls are almost unchanged. Its density is 6.00g/cm3, and its thermal expansion rate is close to that of metal. It can be used in combination with metal.
Color: white, creamy yellow;
Main size: 1.0mm-101.6mm, larger size can be customized;
Density: 6.0g/cm3
Main grades: G5;
Vickers hardness: HV1700-1800;
Main features: high strength, high hardness, wear resistance and pressure resistance, high temperature resistance, corrosion resistance, non-magnetic, electrical insulation, good self-lubrication;
The corresponding grade of G5 ZrO2 ceramic ball is very high grade, with high precision and good roundness, and the relevant indexes are controlled very strictly. We have professional personnel and advanced production equipment to control and strictly follow the standards.
Steel ball grade: G5
Ball diameter variation: 0.13μm
Spherical error: 0.13μm
Surface roughness: 0.014μm
Ball batch diameter variation: 0.25μm
Ball gauge value spacing: 1μm
Preferred ball gauge value: -5 - +5
