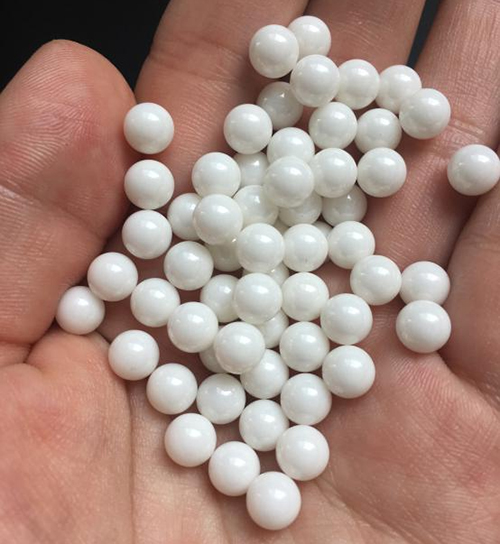

G10 ZrO2 Ceramic Ball is a high quality ceramic ball product from Condar. As a professional manufacturer, we have two factories with complete production lines. With more than 20 years of experience in the industry, we have always insisted on pioneering and innovating, and continuously improving our production capacity and product quality.
G10 ZrO2 ceramic ball is resistant to strong alkali, high temperature, self-lubricating, and can work normally in a grease-free environment. It can cope with complex use and working environments, work stably in high temperature environments below 1000 degrees Celsius, and has very little volume change. It has excellent thermal vibration performance, and the thermal vibration temperature is 200-260 degrees Celsius.
Color: white, creamy yellow;
Main size: 1.0mm-101.6mm, larger size can be customized;
Density: 6.0g/cm3
Main grades: G10;
Vickers hardness: HV1700-1800;
Main features: high strength, high hardness, wear resistance and pressure resistance, high temperature resistance, corrosion resistance, non-magnetic, electrical insulation, good self-lubrication;
G10 ZrO2 ceramic balls are of a relatively high grade, G10, and are defined by relevant indicators. We are able to produce more than one grade of ceramic ball products, and can also provide you with stainless steel balls, bearing steel balls and carbon steel balls, iron balls, aluminum balls, copper balls and other products.
Steel ball grade: G10
Ball diameter variation: 0.25μm
Spherical error: 0.25μm
Surface roughness: 0.02μm
Ball batch diameter variation: 0.5μm
Ball gauge value spacing: 1μm
Preferred ball gauge value: -9 - +9
