G200 ZrO2 Ceramic Ball, a high quality ceramic ball product, comes from Condar, a Chinese supplier. We are experienced in both production and sales, and have trade partnerships with customers in the United States, Europe, and Southeast Asia, and have received favorable comments. Feel free to send us an inquiry.

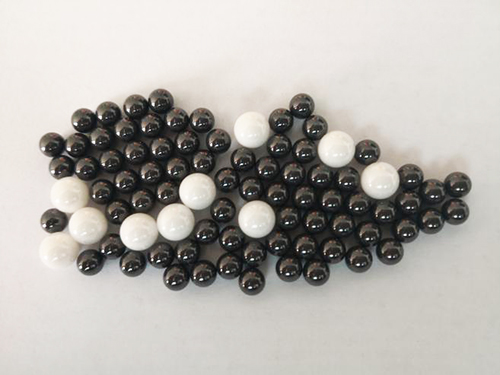

G200 ZrO2 ceramic balls are available in white and creamy yellow. They are high-strength and high-hardness products with stronger impact resistance than silicon nitride ceramic balls and better wear resistance than stainless steel. They are also resistant to high temperatures and corrosion, and can be used in some complex working conditions.
G200 ZrO2 ceramic balls are completely non-magnetic and electrically insulating, and can be used with high-precision electronic equipment. They are also self-lubricating, reducing energy consumption and wear.
Color: white, creamy yellow;
Main size: 1.0mm-101.6mm, larger size can be customized;
Density: 6.0g/cm3
Main grades: G200;
Vickers hardness: HV1700-1800;
Main features: high strength, high hardness, wear resistance and pressure resistance, high temperature resistance, corrosion resistance, non-magnetic, electrical insulation, good self-lubrication;
G200 ZrO2 ceramic balls are one of the grades that Condar can provide you with. We can also provide higher precision and common industrial grade precision. You are welcome to choose according to the actual situation. The size specifications can also be selected or customized.
Steel ball grade: G200
Ball diameter variation: 5μm
Spherical error: 5μm
Surface roughness: 0.15μm
Ball batch diameter variation: 10μm
Ball gauge value spacing: 15μm
Preferred ball gauge value: -60- +60
