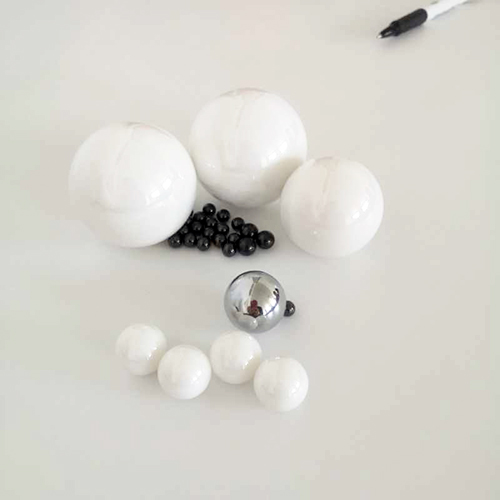

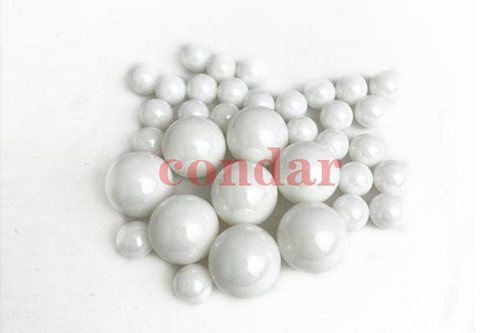

G100 ZrO2 Ceramic Ball is manufactured by Condar's factory and is available in stock in our warehouse. We are a professional steel ball supplier integrating production and sales. Our products include stainless steel balls, bearing steel balls, carbon steel balls, ceramic balls, aluminum balls, etc. We look forward to establishing long-term cooperative relationships with more customers.
One of the main features of G100 ZrO2 ceramic ball is its high hardness, Vickers hardness is HV1700-1800, and its compression, bending and wear resistance are stronger than stainless steel. In addition, high temperature resistance is also a major feature of it. This ceramic ball can also be considered for use in more complex working environments, which can provide a longer service life.
Color: white, creamy yellow;
Main size: 1.0mm-101.6mm, larger size can be customized;
Density: 6.0g/cm3
Main grades: G100;
Vickers hardness: HV1700-1800;
Main features: high strength, high hardness, wear resistance and pressure resistance, high temperature resistance, corrosion resistance, non-magnetic, electrical insulation, good self-lubrication;
G100 ZrO2 ceramic balls are one of the grades that Condar can provide you with. We can also provide higher precision and common industrial grade precision. You are welcome to choose according to the actual situation. The size specifications can also be selected or customized.
Steel ball grade: G100
Ball diameter variation: 2.5μm
Spherical error: 2.5μm
Surface roughness: 0.1μm
Ball batch diameter variation: 5μm
Ball gauge value spacing: 10μm
Preferred ball gauge value: -40- +40
