Condar is a factory specializing in the production of steel balls. Choose us to be your G100 304 stainless steel ball supplier. Our steel balls have good rust resistance, and the specifications and sizes can be customized. They can be used in a wide range of industries and can be used as accessories in many fields. The price is also very favorable.

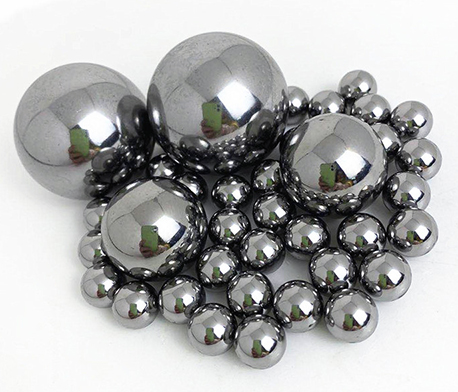

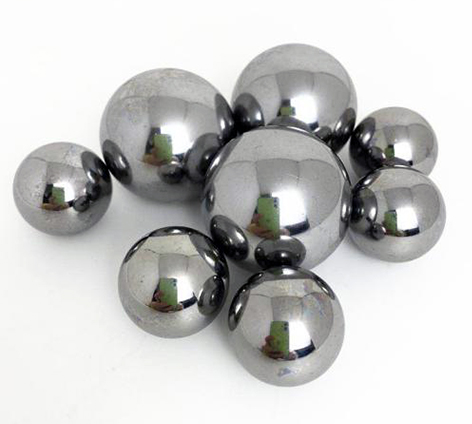

G100 304 stainless steel ball is a typical representative of austenitic steel. It is generally non-magnetic, but it is magnetic after polishing. It can be demagnetized. It has no heat treatment hardening phenomenon, low hardness, and is easy to process. It has good anti-rust and anti-corrosion properties, and the surface is polished and smooth like a mirror.
Condar's G100 304 stainless steel ball is one of the main products. The data related to G100 grade steel balls can be found below. We have strict quality control during production and do a good job of controlling the precision of steel balls.
Steel ball grade: G100
Ball diameter variation: 2.5μm
Spherical error: 2.5μm
Surface roughness: 0.1μm
Ball batch diameter variation: 5μm
Ball gauge value spacing: 10μm
Preferred ball gauge value: -40 - +40
Main specifications: 0.5mm-50mm, larger size steel balls can be customized;
Density: 7.93g/cm3
Grade: G100;
Rockwell hardness: ≤HRC26;
Main features: good rust prevention, soft material, low hardness, moderate price, wide application;
Application areas: food grinding, medical equipment, hardware parts, chemical mixing, cosmetic accessories, bearing accessories, lock core accessories, etc.;

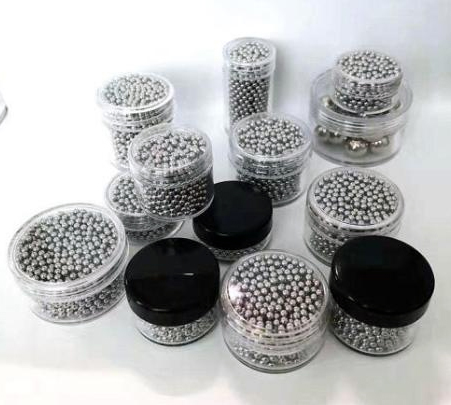

Packing method: carton + pallet, wooden box packaging, bottled, canned, small bag packaging, can be packaged according to customer requirements;
|
C |
0.08% max. |
|
Si |
1.00% max. |
|
Mn |
2.00% max. |
|
P |
0.045% max. |
|
S |
0.030% max. |
|
Cr |
17.00 to 19.00% |
|
Molybdenum |
----- |
|
Ni |
8.00 to 10.00% |
