Condar is a factory specializing in the production of steel balls. Choose us to be your G100 316 stainless steel ball supplier. Our steel balls have good rust resistance, and the specifications and sizes can be customized. They can be used in a wide range of industries and can be used as accessories in many fields. The price is also very favorable.

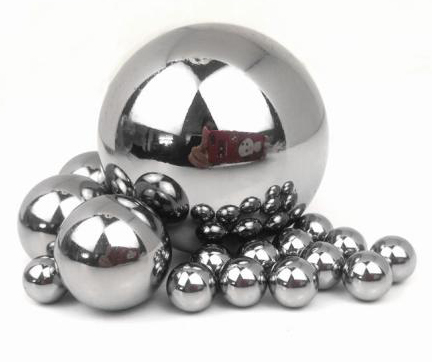

G100 316 stainless steel ball is a corrosion-resistant steel ball, usually used in special industries with high anti-corrosion requirements, such as medical, chemical, aerospace, etc., and its performance is better than 304 stainless steel ball.
Main size: 0.5mm-50.0mm, larger size steel balls can be customized;
Density: 7.98g/cm3
Main grade: G100;
Rockwell hardness: ≤HRC26;
Main features: good rust prevention, corrosion resistance, soft material, low hardness, performance better than 304;
Application areas: medical equipment, human accessories, mobile phone batteries, chemicals, cosmetic accessories, aerospace and other fields with high anti-rust requirements;

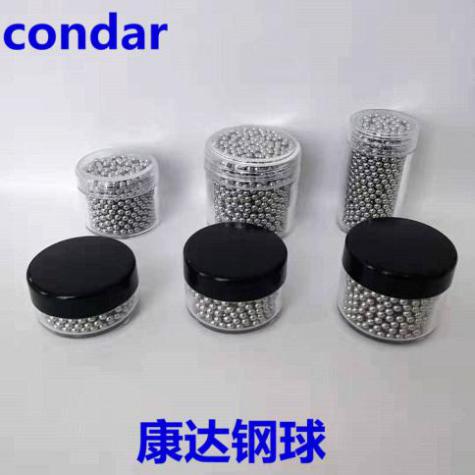

Packaging method: carton + pallet, wooden box packaging, bottled, canned, small bag packaging, can be packaged according to customer requirements.
In G100 316 stainless steel ball, G100 represents its precision. The smaller the number, the better the roundness of the steel ball. We will control the relevant values of G100 316/316L steel ball at the following levels. In addition to referring to the above volume hardness and density values, you can also make appropriate choices based on the grade and more targetedly screen steel ball products that meet the application conditions.
Steel ball grade: G100
Ball diameter variation: 2.5μm
Spherical error: 2.5μm
Surface roughness: 0.1μm
Ball batch diameter variation: 5μm
Ball gauge value spacing: 10μm
Preferred ball gauge value: -40 - +40
|
C |
0.08% max. |
|
Mn |
2.00% max. |
|
P |
0.045% max. |
|
S |
0.030% max. |
|
Si |
1.00% max. |
|
Cr |
16.00 to 18.00% |
|
Ni |
10.00 to 14.00% |
|
N |
0.10% max. |
|
Mo |
2.00 to 3.00% |
